Brand Name :	BIO
Model Number :	3000K
Certification :
Payment Terms :	Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability :	100 units / month
Delivery Time :	7 working - days since getting full payment

Add to Cart

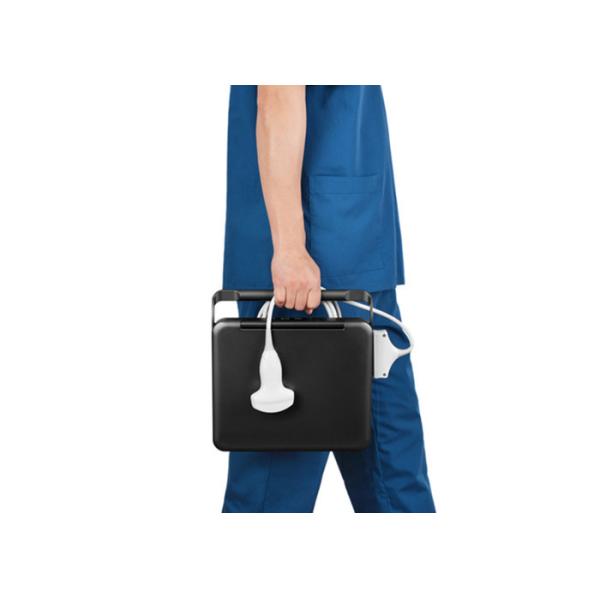

9.7 Inch Touch Screen Control Panel Battery Veterinary Portable Ultrasound USB Diagonosis Pregnant Ultrasound

Feature

1	Double Screens	12-inch LED display , 9.7-inch touch screen control panel makes the operation of the system more simple.
2	Battery	Build-in lithium battery for 2 hours of continuous operation.
3	Storage	Build-in 32GB SSD for more reliable data storage.

Advanced Technology

1	Efficiency	High efficient work-flow design , allows the doctors complete the daily routine inspection quickly and easily , which greatly reduces workload.
2	Intelligent	Intelligent image optimization solutions can help you carry out diagnosis and assessment of the difficult patients with more confidence.It make your operation more accurate and efficient.
3	Visualization	Portable notebook design , full touch screen control panel makes machine interaction more convenient , and it allows doctors to master visual patient information anytime and anywhere.

Technical Specification

Imaging Processing Calculation
Monitor	12-inch LED display
Control panel	9.7-inch touch screen
Probe connector	1
USB port	1
HDMI output	1
LAN output	1
TGC	8 segments
Gain	0~100 dB
Depth	1~23cm
Edge enhancement	0~4
Dynamic range	36~102dB adjustable
Angle	50%~100%
Power	80%~100%
AQ Sonic	0~8
E Crystal	0~8
Lines Density	Low, medium, standard, high
Frame Average	0~7
Map	1~16
Focus position	1~4
Focus number	1~5
Brightness	±100%
Applications	Abdomen, Urology, Gynecology,Obstetrics ,Multinational Thyroid, Breast, Testes, Peripheral

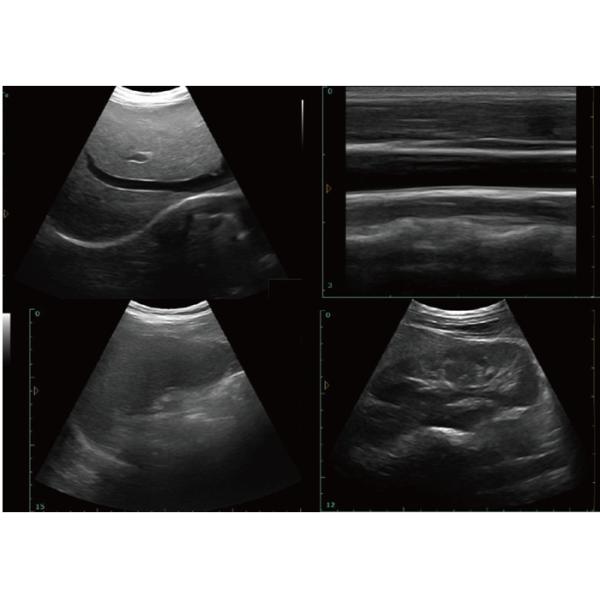

Display mode	B, 2B, 4B mode M, B/M mode Zoom B mode Compound imaging Trapezoid imaging Multiple Beam Formation Lines Density: Low, Medium, Standard High
Zoom	Zoom frozen 9 Steps: ×0.5, ×0.75, ×1.0, ×1.5, ×2.0, ×2.5,×3.0, ×4.0, ×6.0
Memory	Cine-memory - Line Ratio B-mode (max.1024 frames) M-mode (max.1024 frames) Hard disk 32GB SSD
Weight	Gross weight:7.5kg (2 probes) 8.5kg (4 probes) Net weight :4.0kg,0.5kg(battery)
Power Requirements	Voltage: AC 100V to 240V±10% Frequency: 50HZ±1Hz; 60Hz±1Hz Rated Power: 250VA
Software & Accessories	Power Cable Operation Manual Hand-carry bag
Optional Accessories	Mobile Trolley Video Printer Ink-Jet Printer Laser Printer HDML Video Converter

Probes Available

Operation Video

BIO- Catalogue for ultrasound scanner 3000K.pdf
