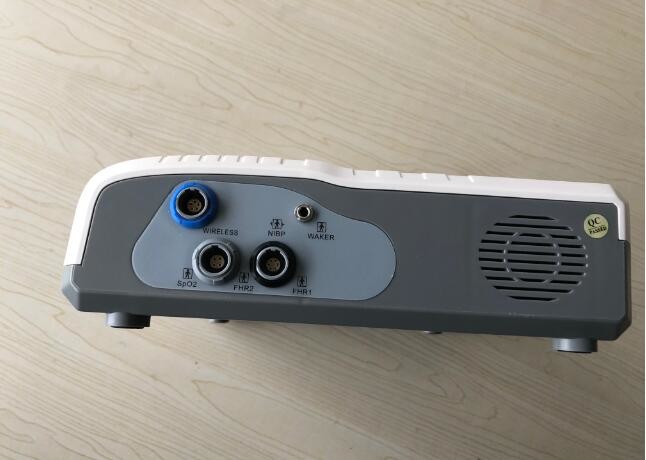

7”TFT Fetal / Maternal Monitor Patient Care Monitoring System With Folding 90 Degree Screen

Product Categories

Wuxi Biomedical Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	BIO
Model Number :	L8
Payment Terms :	Credit card, Paypal, T/T
Supply Ability :	1000 units / month
Delivery Time :	7 working - days since getting full payment

Add to Cart

7” TFT Fetal / Maternal Monitor Patient Care Monitoring System With Folding 90 Degree Screen

Product detail

This series is a lightweight, compact fetal and maternal monitor, it can meet the need of whole stages of

labor (including antepartum and intrapartum monitoring for fetus and mother),It also can be connected to

the obstetrical central station.

Features

1	7”TFT Colour screen ,high resolution, folding up 90 degree
2	Built-in long life 110mm thermal printer
3	Special high sensitive probe
4	Long time data storage which can be played back and printed
5	Rechargeable battery supports longtime work
6	DSP technology, real time identifying and measurement for FHR, accurate and reliable results
7	Automatic Fetal Movement detection and accounting
8	Central Monitoring system
9	CTG scoring system: Krebs score and fischer score

Specification

1	FHR (Fetal Heart Rate)	Parameters: FHR1, FHR2 (Optional) Measurement range: 50-240bpm Accuracy: ±2 bpm Sweep speed: ×1, ×2, ×4, ×8
2	Transducer	9 crystals, pulsed doppler, high sensitivity Frequency: 1.0MHz
3	TOCO	Measurement range: 0-100 TOCO baseline: 0, 5, 10, 15, 20 (selectable)
4	Data Storage	3000 hours trend graph of fetal parameters
5	Scoring	Fischer, Krebs, NTS, ACOG
6	Language	English, Spanish, Turkish, French
7	Printer	Type: Built-in thermal recorder, 110*100mm Print mode: Real-time recording, timed recording, selectable Print speed: 1, 2, 3 cm/min
8	Network	Wired / wireless terminal
9	Speakers	2 speakers, power: 1W
10	Display	7“ Color TFT LCD, adjustable Resolution:800*480
11	Power supply	AC power input: 100~240V AC 1.0A VAC 50/60Hz Battery: Li-Ion battery, 2200mAh / 14.8V Maximum 4 hours of continuous monitoring FHR and TOCO
12	Parameters	Standard: FHR, TOCO, FM Optional: FHR2, Fetus waker, Trolley, Wall Mount Touch screen function Connect with L8T Wireless station L8A (Maternal SpO2, PR, NIBP) FAS (Fetal Acoustic Stimulator) Twins FHR Measurement
13	Weight	1.75kgs
14	Dimensions	295(L)240(W)75(H)mm
