Medical Device Looking For Blood Vessel Infrared Vein Finder
Working on Face Elbow Hand

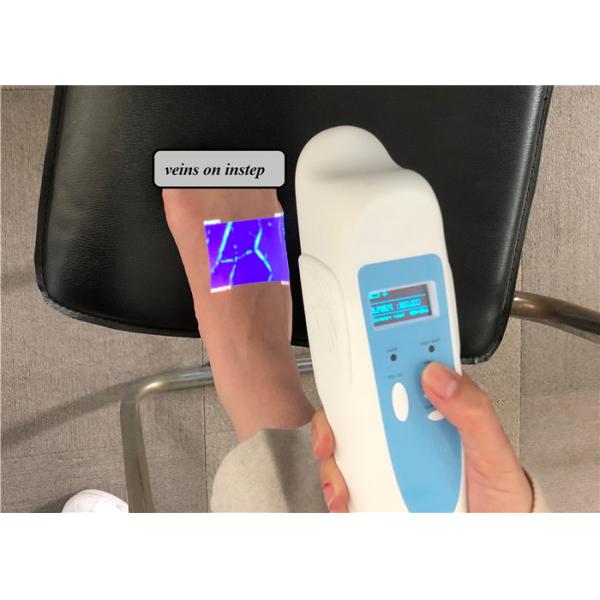

BS7000,the infrared vein finder helps to perform blood draws by
projecting a map of the peripheral veins on the skin.
The obesity,new born baby,plastic surgery and dark skin people will
be mostly applicatable.
The Vein Showing System is a professional portable medical device
for vein imaging. It is simple and convenient.
Product Feature
1. The design is ergonomic and small and exquisite.
2. Real-time access to vascular position.
3. Point-to-point skin surface imaging, alignment accuracy, the
system resolution of 0.6mm.
4. Multi-lens combination to eliminate the interference of visible
light, image imaging clear, no artifacts.
Technical Feature
1, Power supply:External power supply: 100-240V AC, 50/60Hz
Built-in Li-ion battery: 7.4 V DC
2, Input power: 35VA
3, Display mode: OLED LCD, and DLP projection
4, Overlap accuracy: Vertical offset ≤ 0.3mm and horizontal offset
≤ 0.3mm for 20-26cm.
5, Minimum resolution: Test line at an interval of 0.6mm
identifiable for 20-26cm.
6, Best imaging range: 20-26cm.
Product Applications
1. Hospital, pediatric clinic, injection room
2. Outpatient clinic, medical laboratory
3. Blood bank, military medics unit, the CDC
4. Rehabilitation center, nursing homes and others
Application Scope
1. Children
2. The elderly
3. Obese patients
4. Dark-skinned patients
5. Patients with anemia, hypotension, or excessive loss of blood
Product Benefits
Providing friendly treatment
Reducing venipuncture failure and patients' pain
Improving staff efficiency and patients' experience
Attracting and helping to retain more patients
Specification
| Appearance | Pink , Blue or Gray |
| Powered by | Li-ion & AC |
| Host weight | 0.5kg |
| Gross weight | 3.8kgs |
| Dimensions | 310(L) *300(W)*145mm(H) |
| Certificate | CE |
| 3 types | Handheld, desktop, trolley. |
| 3 colors optional (host) | Pink, blue, gray. |
| Light type | Near infrared light |
| Visible vein size | ≥1mm |
| Detecting depth | 10mm |
| Accuracy | ≤0.3mm |
| Best imaging distance | 20-26cm |
| Power supply | AC and DC |
| Charging time | 2h |
| battery working time | 4h |
Pack and weight
The packing box is high quality corrugated carton box with foams
inside to prevent any product damage.
Gross weight: Refer to the outer packing box.
Packing dimensions: 440mm (L) × 310mm (W) × 145mm (H)
|
Handheld Host weight: 0.5kg Gross weight: 1.5kg Dimensions: 310(L)*187(W)*145mm(H) |
| Desktop Host weight: 0.5kg Gross weight: 3.8kg Dimensions: 310(L)*300(W)*145mm(H) |
| Trolley Host weight: 0.5kg Gross weight: 9kg Dimensions: 730(L)*430(W)*180mm(H) |
Accessories
(1) Power cord (2) Adaptor | 1 pc 1 pc |
(3) Cleaning cloth (4) Desiccant (5) Certificate of Conformity (6) Manual
| 1 pc 2 bags 1 pc 1 pc
|
