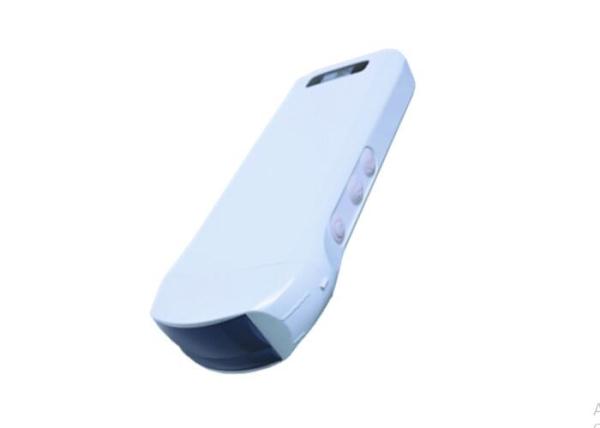

5G Handheld Ultrasound Scanner Convex: 3.5~5MHz, Linear: 7.5~10MHz, Cardiac: 2.5~5MHz

Product Categories

Wuxi Biomedical Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	BIO
Model Number :	W5
Payment Terms :	Credit card, Paypal, T/T
Supply Ability :	100 units / month
Delivery Time :	7 working - days since getting full payment

Add to Cart

Digital Ultrasound Scanners Handheld Ultrasound Scanner Wifi 5G Connection App Free No Hidden Fees

A portable and affordable ultrasound machine. With the use of a chip, a single probe, a built-in WiFi signal,

a lithium battery and an iPhone / iPad / Android / Windows devices, now you can have an ultrasound anywhere, anytime.

no external networks needed and work for most specialties in hospitals , clinics, healthcare center etc.

Specification

Type	Linear/convex/cardiac	Imaging mode	B,BM,Color,PDI,PW
Frequency	Convex:3.5/5Mhz Linear:7.5/10MHz Cardiac:2.5/5Mhz	Depth	Convex:90~305mm Linear:20~80mm Cardiac:90~160mm
Elements	128	Working system	IOS,Android,Windows
Battery time	Working time: >=3h Standby time:>=12h	Battery life	5~8 years
Dimensions	157(h)x70(w)x30(d) mm	Package size	240(h)x235(w)x100(d) mm
Net weight	227g	Gross weight	1.1KGS
Radius	R45	Length	N/A
WIFI type	802.11n/20MHz/5G	Battery Replaceable	Yes
Battery Voltage	3.7v	Battery Capacity	4200mAh
APP interface adjustment	GN(gain) D(depth) ENH(enhancement) DR(dynamic range) F(frequency) Mode 8TGC	Measurement: B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth	Applications: -Abdomen -Obstetrics/ Gynecology -Cardiac -Kidney -Urology -Breast -Thyroid -MSK -Vascular -Pediatrics -Carotid -Small Parts

Standard Configuration

1	Wireless probe	1pc
2	USB cable	1pc
3	Power Plug	1pc
4	Wireless charger	1pc
5	Wrist strap	1pc
6	Portable aluminium alloy box	1pc
7	User's Manual_E format	1pc
8	Warranty Card_Eformat	1pc

Advantage

1	Wireless ultrasound probe connection	Wifi connection Support high-speed transmission of 5G channel vailable to users worldwide
2	The software supports three systems simultaneously	IOS/Android/windows
3	Free use of the software for life	Free unlimited upgrade Do not limit the number of users
4	The probe scanning method can be switched at any time through the software.	Electronic convex Electronic linear Electronic Cardiac
5	Probe configuration with ultra-wide frequency and variable frequency (2.5MHz-10MHz)	All-in-one probe
6	Suitable for more than 20 clinical applications of systemic examination	liver, gallbladder, spleen, kidney, bladder, obstetrics and gynecology, blood vessels, thyroid, breast, nerve, musculoskeletal, small organs, hip bone, Cardiac, etc.
7	Built-in 4200mAh lithium battery, support wireless charging	Long standby 11h attery life of 5-8 years Fast charging
8	Low-power processing for long-lasting work and increased productivity	Power consumption is only 2.5W, the machine works continuously for 5 hours.
9	Lightweight design, the whole machine weight	227g
10	Support for Dicom	3.0 features
11	18 months warranty, after-sales service is more assured	Global free repair The failure rate is less than 1%
12	Worldwide delivery, delivery to the door within 3-10 business days	High efficiency transportation, express mail support for all countries
13	Advanced configuration	Wireless charging board Lightweight special aluminum case Anti-shedding wristband

5G Wifi Handheld Ultrasound Scanner Pocket Ultrasound Built - in 4200mAh Lithium Battery Wireless Charger Supported 2
