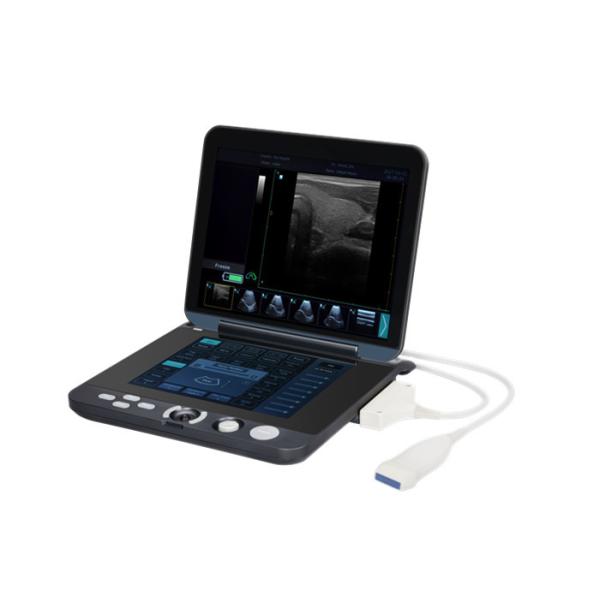

128 Images Permanent Storage Portable Digital Ultrasound Scanner
with 12 Inch LED Screen
BIO 3000K is a notebook Back and White ultrasound system with full
touch screen , which reflects our pursuit of ultrasound image ,
operation and mobile performance . With a break design concept , we
provide a more clear image quality . More stable performance ,
and bring you a comprehensive clinical diagnosis solution , giving
you a new experience for you ultrasonic diagnostic work.
Feature
· 12-inch LED display , 9.7-inch touch screen control panel makes
the operation of the system more simple.
· Build-in lithium battery for 2 hours of continuous operation.
· Build-in 32GB SSD for more reliable data storage.
Advanced Technology
· Efficiency
High efficient work-flow design , allows the doctors complete the
daily routine inspection quickly and easily , which greatly reduces
workload.
· Intelligent
Intelligent image optimization solutions can help you carry out
diagnosis and assessment of the difficult patients with more
confidence.
It make your operation more accurate and efficient.
· Visualization
Portable notebook design , full touch screen control panel makes
machine interaction more convenient , and it allows doctors to
master visual patient information anytime and anywhere.
Specification
| Monitor | 12-inch LED display |
| Control panel | 9.7-inch touch screen |
| Probe connector | 1 |
| USB port | 1 |
| HDMI output | 1 |
| LAN output | 1 |
| TGC slide pots | 8-step |
| Gain | 0~100 dB |
| Depth | 1~23cm |
| Dynamic range adjustable | 36~102dB |
| Edge enhancement | 0~4 |
| Dynamic range adjustable | 36~102dB |
| Angle | 50%~100% |
| Power | 80%~100% |
| AQ Sonic | 0~8 |
| E Crystal | 0~8 |
| Lines Density | Low, medium, standard, high |
| Frame Average | 0~7 |
| Map | 1~16 |
| Focus position | 1~4 |
| Focus number | 1~5 |
| Brightness | ±100% |
| Applications | Abdomen, Urology, Gynecology,Obstetrics ,Multinational
Thyroid, Breast, Testes, Peripheral |
| Display mode | B, 2B, 4B mode
M, B/M mode
Zoom B mode Compound imaging
Trapezoid imaging
Multiple Beam Formation
Lines Density: Low, Medium, Standard High |
| Zoom | Zoom frozen
9 Steps: ×0.5, ×0.75, ×1.0, ×1.5, ×2.0, ×2.5,×3.0, ×4.0, ×6.0 |
| Memory | Cine-memory - Line Ratio
B-mode (max.1024 frames)
M-mode (max.1024 frames)
Hard disk 32GB SSD |
| Weight | Gross weight:7.5kg (2 probes) 8.5kg (4 probes)
Net weight :4.0kg,0.5kg(battery) |
| Power Requirements | Voltage: AC 100V to 240V±10%
Frequency: 50HZ±1Hz; 60Hz±1Hz
Rated Power: 250VA |
| Software & Accessories | Power Cable
Operation Manual
Hand-carry bag |
| Optional Accessories | Mobile Trolley
Video Printer
Ink-Jet Printer
Laser Printer
HDML Video Converter |
BIO- Catalogue for ultrasound scanner 3000K.pdf
