Brand Name :	BIO
Model Number :	BS2
Price :
Payment Terms :	Credit card, Paypal, T/T
Delivery Time :	7 working - days since getting full payment
Supply Ability :	100 units / month
Certification :	CE

Add to Cart

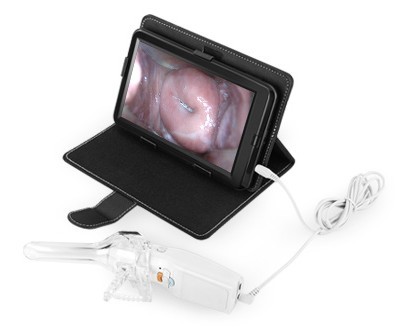

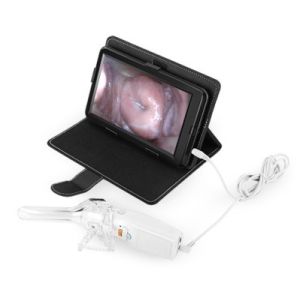

Self - Inspection Handheld Digital Electronic Colposcope Transvaginal Detector With Dimension of 126×40×34mm

General Descriptions

AV/USB output, connect to TV/Computer

Store function, Memoryâ¥16M, more than 150 images by itself

X 1.5 magnification in real time

Electronic colposcope, advanced technology

Performing cervical self-examination at home,
Discover earlier , healthy more .
Monitor treatment and prevent recurrence

The privacy is under your control
Echo-friendly & easy use
High definition display

Portability as a camera
Self - inspection
Cheap cost

Specifications

Main unit

Power Supply	DC 4.5V, AAA batteries (×3)
Output Signal	PAL color system, AV(video)signal
Normal Working Conditions	temperature:15°C—30°C
	humidity:≤93%RH
	pressure:700hPa—1060hPa
Conditions of Storage and Transport	temperature:-20°C~+45 °C
	humidity:90%RH
	pressure:700hPa—1060hPa
Weight	about 50g (batteries non-included)
Dimensions (L×W×H mm)	126×40×34
Safety Class	internal battery source, BF type
Technical Index	effective range of observation	70mm~100mm
	angle of observation	20°, permit error -10%,no upper limit
	resolution	2.5 lp/mm, permit error -10%,no upper limit
	Memory	≥16M

Disposable head

size parameters		S	M	Notes
Outline Dimension	Length (movable bill)	98±2	109±2	Size S is for female before childbirth or age above 50s Size M is for female after childbirth and age below 50s.
Outline Dimension	Width (of the bill)	20±1	27±1
Height of Front Outside Mouth	Minimum	31±5	40±5
Height of Front Outside Mouth	Maximum	60±5	67±5

Item	Model	Description

1	Self-exam Colposcope BS2	1.Self-inspection for cervix 2.Monitor treatment and prevent recurrence 3.AV/USB output in real time,connect to TV/computer 4.Store function, Memory ≥ 16M, more than 150 images by itself 5.High definition display 6.Echo-friendly&Easy use 7.Disposable head 8.TF card applicable 9.The privacy is under your control 10.Portability as a camera

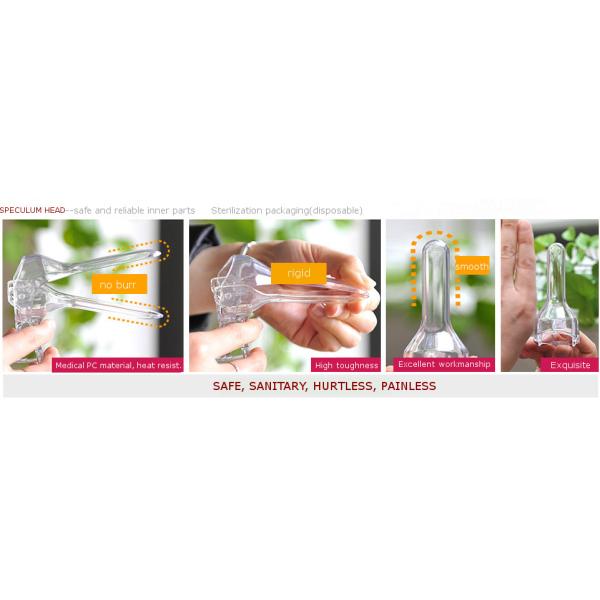

2	Extra Disposable heads for BS2	1.Safe and reliable inner parts 2.Sterilization packaging(disposable) 3.Safe, Sanitary, Hurtless, Painless 4.No burr. Medical PC material, heat resist 5.High toughness 6.Smooth. Excellent workmanship
3	10.2" HD Screen	1. Screen size:10.2" 2. Resolution:1024*600 3. Lightness:450 4. Contrast:400:1 5. Display:Color
