| Brand Name : | BIO |
| Model Number : | ECG-3312G |
| Delivery Time : | 7 working - days since getting full payment |
| Payment Terms : | Credit card, Paypal, T/T |
| Supply Ability : | 500 units / month |

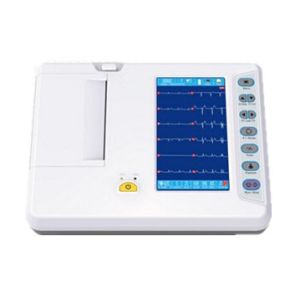

Six Languages 12 Channel High storage ECG Monitoring System 10ch Color Touch Display
Feature
● Portable delicate design, big color touch LCD and soft silicon key to operate
● Accurate pulse pace identification and excellent auto – interpretation function
● High accuracy digital filter, auto - baseline adjustment
● 12 leads synchronously acquisition and record
● Working modes: Auto / Manual / R-R Rhythm / Storage
● 800*480, 10 inch color touch LCD to display detailed ECG information
● 250 cases storage and reply (SD card storage is optional)
● Rechargeable Li-ion battery supports continuous working for 4 hours
● Recording Mode: 3ch+++, 6ch, 6ch+, 12ch
● Real-time freeze function
● 210/215mm*20m roll or 210*140mm fold, high resolution thermal paper to print ECG
● Dimension: 347mm*293mm*83mm, 5.8kgs
● Rs232 and USB interface support USB disk storage, laser printer printing and code scanning (optional), ECG software is optional.
● Language: English, Chinese, French, Italian, Spanish, Russian

Specification
| Lead | Standard 12 leads | Time constant | ≥3.2s |
| lead acquisition | 12bit/1000Hz(synchronously 12 leads) | Frequency response | 0.05~160Hz(-3db) |
| Work mode | 22 Series:Man / Auto/Analysis | Noise level | <15μVp-p |
| 33 Series: Man / Auto/Analysis/Storage | |||
| Filter | AC Filter : 50Hz / 60Hz | Inter-channel Interference | ≤0.5mm |
| EMG Filter : 25Hz / 45Hz | |||
| Anti-Drift Filter : 0.15Hz (Adaptive) | |||
| CMMR | ≥100dB (with AC FILTER) | Sensitivity | 5,10,20, 40, Auto (mm/mV) |
| Input circuit | Floating; Protection circuit against | Recording mode | 3ch+++,6ch,6ch+,12ch |
| Defibrillator effect | Default Man. Mode is 3ch+ format | ||
| Default Auto. Mode is 12ch+ format | |||
| Input Impedance | ≥50MΩ | Paper speed | 6.25,12.5,25,50mm/s(±3%) |
| Input circuit current | ≤0.05μA | Paper | 215 mm*20m Roll paper |
| 210mm*140mm Z-fold paper (only for 33 series) | |||
| Patient current leakage | <10μA | Communication | RS232/ USB port |
| Calibrating voltage | 1mV±2% | Power Supply | AC 110-230V(±10%),50/60Hz(±1Hz),60VA |
| DC Built-in rechargeable battery,14.4V(4400mmAh) | |||
| Voltage tolerance | ≥±500mV | Dimension/Weight | 330mm×270mm×72mm/3.8Kg |

                             |
